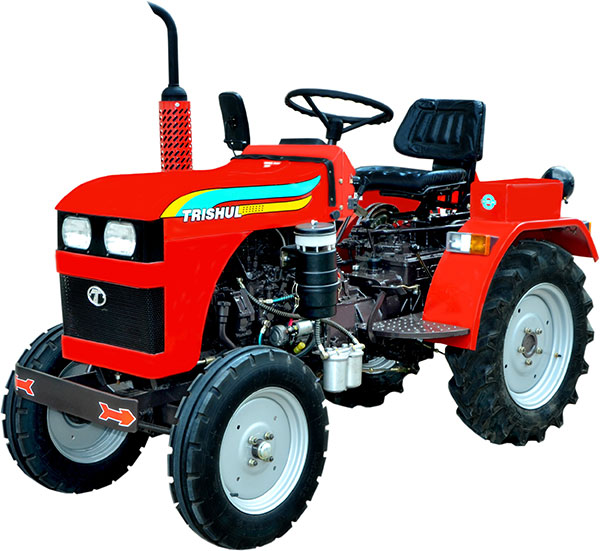

Tractor 22 HP - Technical Specifications


ENGINE
Engine Type Simpson
Type Four Stroke, Direct Injection
Horsepower 22 HP
Engine RPM 2200 RPM
Bore/Stroke 91 / 127 mm
Cylinders Two
Capacity 1670 cc
Cooling System Water Cool
Air Cleaner Dry Air Cleaner
Diesel Comsumption 1.5 Litre/Hour (Approx)

DIMENSIONS
Weight 1010 kg
Length 2270 mm
Width 1016 mm
Height 1700 mm
Ground Clearance 280 mm
Wheel Base 1520 mm
Track Width 812 mm (Driving Wheel)
840 mm (Steering Wheel)

TRANSMISSION
Clutch Dry, Friction Plate
Gear Box 4 Forward, 1 Reverse / Lo. Gear
Steering Mechanical worm and peg type
Minimum Turning Radius With brake: 2.6 m
Without brake: 2.8 m

TYRES
Front 5.20 x 14
Rear 8.00 x 18
