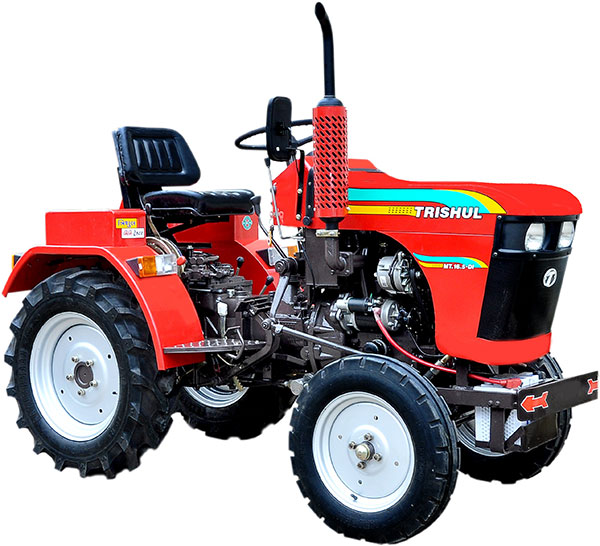

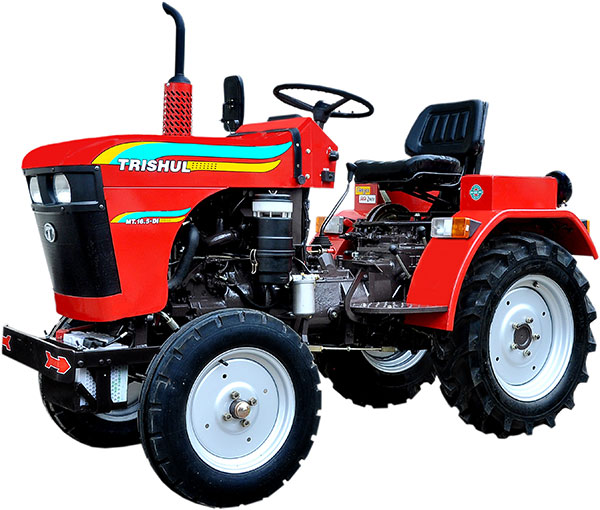

Tractor 16.5 HP - Technical Specifications


ENGINE
Engine Type Field Marshal
Type Four Stroke, Direct Injection
Horsepower 16.5 HP
Engine RPM 2300 RPM
Bore/Stroke 110 / 114 mm
Cylinders One
Capacity 900 cc
Cooling System Water Cool
Air Cleaner Oil Bath
Diesel Comsumption 1.5 Litre/Hour (Approx)

DIMENSIONS
Weight 950 kg
Length 2200 mm
Width 1016 mm
Height 1730 mm
Ground Clearance 280 mm
Wheel Base 1330 mm
Track Width 812 mm (Driving Wheel)
840 mm (Steering Wheel)

TRANSMISSION
Clutch Dry, Friction Plate
Gear Box 4 Forward, 1 Reverse / Lo. Gear
Steering Mechanical worm and peg type
Minimum Turning Radius With brake: 2.4 m
Without brake: 2.6 m

TYRES
Front 5.20 x 14
Rear 8.00 x 18
