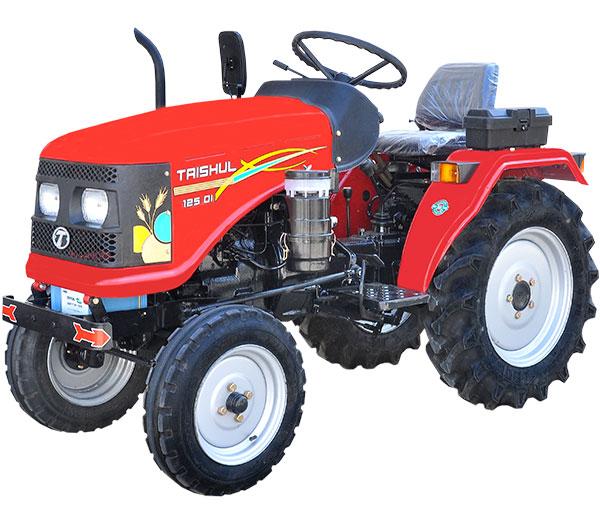

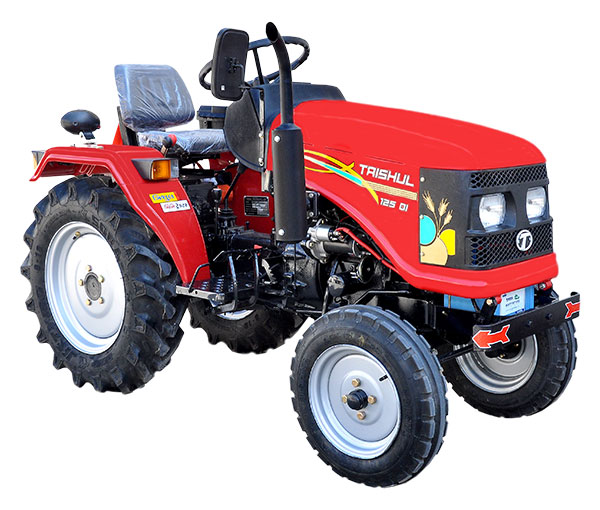

Tractor 16 HP - Technical Specifications


ENGINE
Engine Type Field Marshal
Type Four Stroke, Direct Injection
Horsepower 16 HP
Engine RPM 2300 RPM
Bore/Stroke 110 / 114 mm
Cylinders One
Capacity 815 cc
Cooling System Water Cool
Air Cleaner Oil Bath
Diesel Comsumption 1.25 Litre/Hour (Approx)
Diesel Tank 18 litre
Engine Oil 2 litre
Main Gearbox Difference 18 litre

DIMENSIONS
Weight 780 kg
Length 2160 mm
Width 1690 mm
Height 1620 mm
Ground Clearance 290 mm
Wheel Base 920 mm
Track Width 760 mm (Driving Wheel)
750 mm (Steering Wheel)

TRANSMISSION
Clutch Dry, Friction Plate
Gear Box 3 Forward, 3 Reverse / Lo. Gear
Steering Mechanical worm and peg type
Minimum Turning Radius With brake: 2.6 m
Without brake: 2.8 m

TYRES
Front 4.50 x 12
Rear 8.00 x 18
